How to install Hardie^® Backer Board on floors

Installing tile over a wood subfloor demands a stable, moisture-resistant underlayment that holds up over time. Hardie^® Backer Board gives professional contractors and installers the strength and durability that long-lasting floor tile needs. This guide walks you through the full process — from subfloor prep to setting tile — so you get it right the first time.

When to use Hardie^® Backer Board on floors

Use Hardie^® Backer Board as your tile underlayment any time you install tile over a wood-framed floor. Unlike plywood or drywall, this cement backer board resists moisture and won't swell, warp, or break down when it gets wet. That makes it a dependable choice for high-traffic residential and light commercial floors.

For floors, James Hardie recommends quarter-inch Hardie^® Backer Board. This thickness balances strength with a low profile that works well with door clearances and floor transitions. Paired with proper subfloor prep and correct technique, it creates a solid base for ceramic, porcelain, or natural stone tile.

Important: This guide covers floor installations only. Wall and shower applications follow different requirements and methods.

Tools and materials you'll need

Gather everything before you start. Having it all on hand keeps the job moving and your workflow clean.

• Modified dry-set cement mortar (thinset)
• Corrosion-resistant roofing nails or 1¼-inch Backer-On^® screws
• 2" alkali-resistant glass fiber tape
• Trowels
  • Quarter-inch square-notch trowel (for board to subfloor)
  • Notched trowel sized for your tile (for tile to board)
• Carbide-tipped scoring knife, utility knife, or shears
• Straightedge, tape measure, and chalk line
• Recommended: Safety glasses, dust mask, and knee pads

Subfloor requirements for cement board installation

Your subfloor must meet specific structural specs before you install cement board. Skipping this check is one of the most common mistakes contractors make—and it leads straight to cracked tile and callbacks.

Minimum subfloor specifications

• Plywood: Minimum ⅝-inch exterior-grade plywood
• OSB: Minimum 23/32-inch with Exposure 1 classification or better
• Joist spacing: 16 inches on center is standard; 24 inches on center is the maximum If joist spacing exceeds 16 inches on center, check local building codes for the right subfloor thickness. Never install Hardie^® Backer Board on joists spaced more than 24 inches on center.

If your floor meets the requirements, the next step is to ensure that it is structurally sound and free of damage.

Assessing subfloor condition

Before you lay any board, inspect the subfloor:

1. Check structural soundness. Walk the whole floor and note any bounce, flex, or squeaks.
2. Look for damage. Find warped, delaminated, or water-damaged sections. Replace any warped, missing, or uneven sections so you're working over a flat, clean, stable surface.
3. Verify flatness. Run a straightedge across the surface to spot high spots and dips.
4. Confirm fastening. Make sure subfloor panels are securely fastened to the joists.

Once you’ve done that, you’re ready to cut your Hardie^® Backer cement board to size.

Cutting Hardie^® Backer Board

Hardie^® Backer Board cuts cleanly with the right technique:

1. Score the board along your cut line with a carbide-tipped scoring knife and straightedge.
2. Make several passes to deepen the groove.
3. Snap the board by lifting one side along the scored line.
4. Smooth rough edges as needed.

For curves, cutouts, or complex shapes, use shears or a jigsaw with a carbide blade. Check out our video on how to cut Hardie^® Backer cement board for detailed instructions.

How to lay out Hardie^® Backer Board

A solid layout cuts waste, reduces cuts, and keeps your install within spec. Dry-fit your boards before you mix any thinset.

Layout rules

• Maintain ⅛-inch gaps between all board edges
• Keep boards ⅛ inch back from walls and cabinet bases
• Stagger joints in a brick-laying pattern, offsetting seams by at least 12 inches
• Never align board joints directly over subfloor joints
• Avoid four board corners meeting at a single point

These rules keep stress from concentrating at the joints and leave room for natural material movement. The gaps also give mortar and tape space at the seams.

Now you’re ready to attach your board to your subfloor.

Step-by-step Hardie^® Backer Board floor installation process

With your subfloor prepped and boards cut, you're ready to install. Follow these steps for a professional result.

1. Apply mortar to the subfloor: Apply a supporting bed of mortar or modified thinset to your subfloor with your trowel.

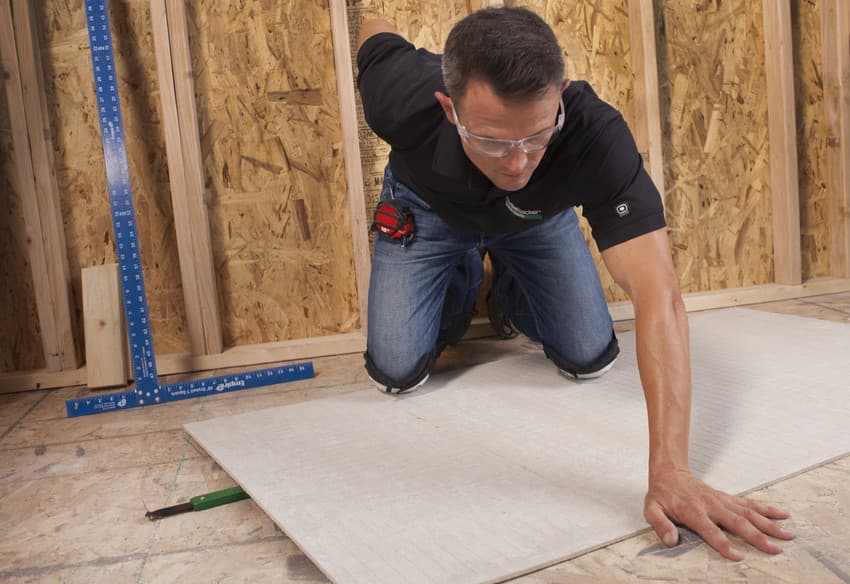

2. Set the boards: Using a sliding motion, firmly and evenly embed your Hardie^® Backer cement board in the wet mortar so the installation can hold tile firmly in place over time.
3. Fasten the boards: Using the screw pattern as a guide, fasten your Hardie^® Backer cement board with nails or screws every 8” on center over the entire surface, designed to support tile weight under load with high compressive and flexural strength.
   1. Keep screws between ⅜” and ¾” from board edges and 2” from board corners.
   2. Set your screwheads flush with the surface. Be careful not to overdrive them.
4. Tape and fill the joints: Fill all the joints with the same mortar used to set the tiles. Embed 2” wide, high-strength, alkali-resistant glass fiber tape in the mortar and level.

How to set tile over Hardie^® Backer Board

With your cement board installed and joints taped, you're ready for tile. Hardie^® Backer Board works with ceramic, porcelain, and natural stone, giving you flexibility for nearly any project.

1. Clean the surface: Wipe the surface of your Hardie^® Backer cement board clean with a damp sponge.
2. Apply modified thinset: Spread the modified thinset with a notched trowel appropriate for the size of tile you are installing. For best results, comb the ridges in one direction only.
3. Set tiles firmly: Twist or press and beat in tiles.
4. Allow proper cure time: Allow a minimum of 24 hours curing set time before grouting.

Installing Hardie^® Backer cement board to a wooden subfloor is as simple as that, and it’s a preferred choice for contractors because of its strength and ease of cutting!

Take your installation skills further

Mastering Hardie^® Backer Board installation is one more way to deliver quality work that protects your reputation and keeps customers happy. When your tile floors stay crack-free and your callbacks stay low, everyone wins.

For complete Backer Board installation instructions and technical specs, visit the James Hardie Installation Instructions & Technical Docs page. You can also watch the official How to Install Hardie^® Backer Cement Board on Floors video for a visual walkthrough.

Frequently Asked Questions

What thickness of Hardie^® Backer Board should I use for floors?

Use quarter-inch Hardie® Backer Board for floors. James Hardie recommends this thickness because it delivers strong, stable support while keeping floor height low enough for clean transitions and door clearances.

Do I need to use thinset under cement board on floors?

Yes. A mortar bed between the subfloor and cement board is essential. The thinset fills voids, prevents movement, and ensures full contact between layers. Skipping it leaves fasteners to do all the work, which leads to flex and cracked tile.

What is the correct cement board screw spacing?

Fasten screws every 8 inches on center across the entire board. Keep fasteners ⅜ inch to ¾ inch from board edges and 2 inches from corners. Use the EZ Grid^® pattern on Hardie^® Backer Board as your guide.

How long should I wait before grouting tile over Hardie^® Backer Board?

Wait at least 24 hours after setting tile before you grout. This gives the thinset time to reach adequate strength. Allow more time in cold or high-humidity conditions.

Can I install Hardie^® Backer Board over any subfloor?

No. The subfloor must meet minimum specs: ⅝-inch exterior-grade plywood or 23/32-inch OSB with Exposure 1 classification. Floor joists must be no more than 24 inches on center, and if spacing exceeds 16 inches on center, check local codes for added subfloor thickness.

What type of tape should I use on cement board joints?

Use 2-inch alkali-resistant glass fiber tape. Standard drywall tape isn't suitable for cement board. Embed the tape in fresh thinset and smooth it level with the board surface.
